PUL6004BU-FE Cable CAT6 1000FT AWG23 UTP LSZH blue Panduit
SKU PUL6004BU-FE
$262.33
BLUE
Units in product: Unit
Price per unit: 262.33 per unit
In stock: 11 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
PUL6004BU-FE Cable CAT6 1000FT AWG23 UTP LSZH blue Panduit
Product Details
UPC: 07498387845
Brand: Panduit
Weight: 32.00 lbs
PUL6004BU-FE
Catalog
Description

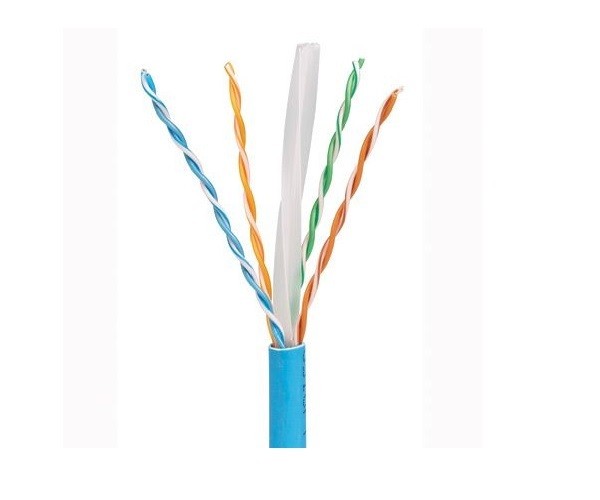

Enhanced Category 6 UTP copper cable, low smoke zero halogen (LSZH), 4-pair, conductors are 23 AWG construction with HDPE insulation, twisted in pairs, separated by an integrated pair divider, and all four pairs are protected by an LSZH (IEC 60332-1) jacket, blue.
Specifications
| Environment | Indoor |
| Sub Brand | PanNet |
| Performance Level | Category 6 |
| Cable Construction | U/UTP |
| Flammability Rating | LSZH-1 (IEC 60332-1) |
| EuroClass Rating | Dca-s2,d2,a1 |
| LP Rating | NA |
| Resistance Properties | Flame-Resistant |
| Jacket Material | LSZH |
| Nominal Cable Outside Diameter (In.) | 0.22 |
| Nominal Cable Outside Diameter (mm) | 5.7 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 50 |
| Maximum Installation Temperature (°F) | 122 |
| Minimum Installation Temperature (°F) | 32 |
| Maximum Installation Tension (lb) | 25 |
| Maximum Installation Tension (N) | 110 |
| Bend Radius (In.) | 0.9 |
| Bend Radius (mm) | 22.8 |
| Number of Pairs | 4 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Overall Length (m) | 305 |
| Conductor Gauge (AWG) | 23 |
| Insulation Material | HDPE |
| Insulation Diameter (In.) | 0.04 |
| Insulation Diameter (mm) | 1 |
| Maximum Voltage (V) | 80 |
| Standards Met | Exceeds ISO 11801 Class E and ANSI/TIA-568-C.2 Category 6 standards, IEC 60332-1, IEC 60754-1 and -2, IEC 61034-2, EN 50399: Class Dca-s2-d2-a1, meets IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS Compliant |
| Color | Blue |
| Overall Length (ft.) | 1 |
| Packaging Type | Reelex |
| Pricing Category 1 | CB |
| Pricing Category 2 | CB1 |
Packaging Detail
| UPC | 07498387845 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 1.9369 |
| Std. Ctn. Qty. | 24 |
| Std. Ctn. Volume (cf) | 46.4852 |
