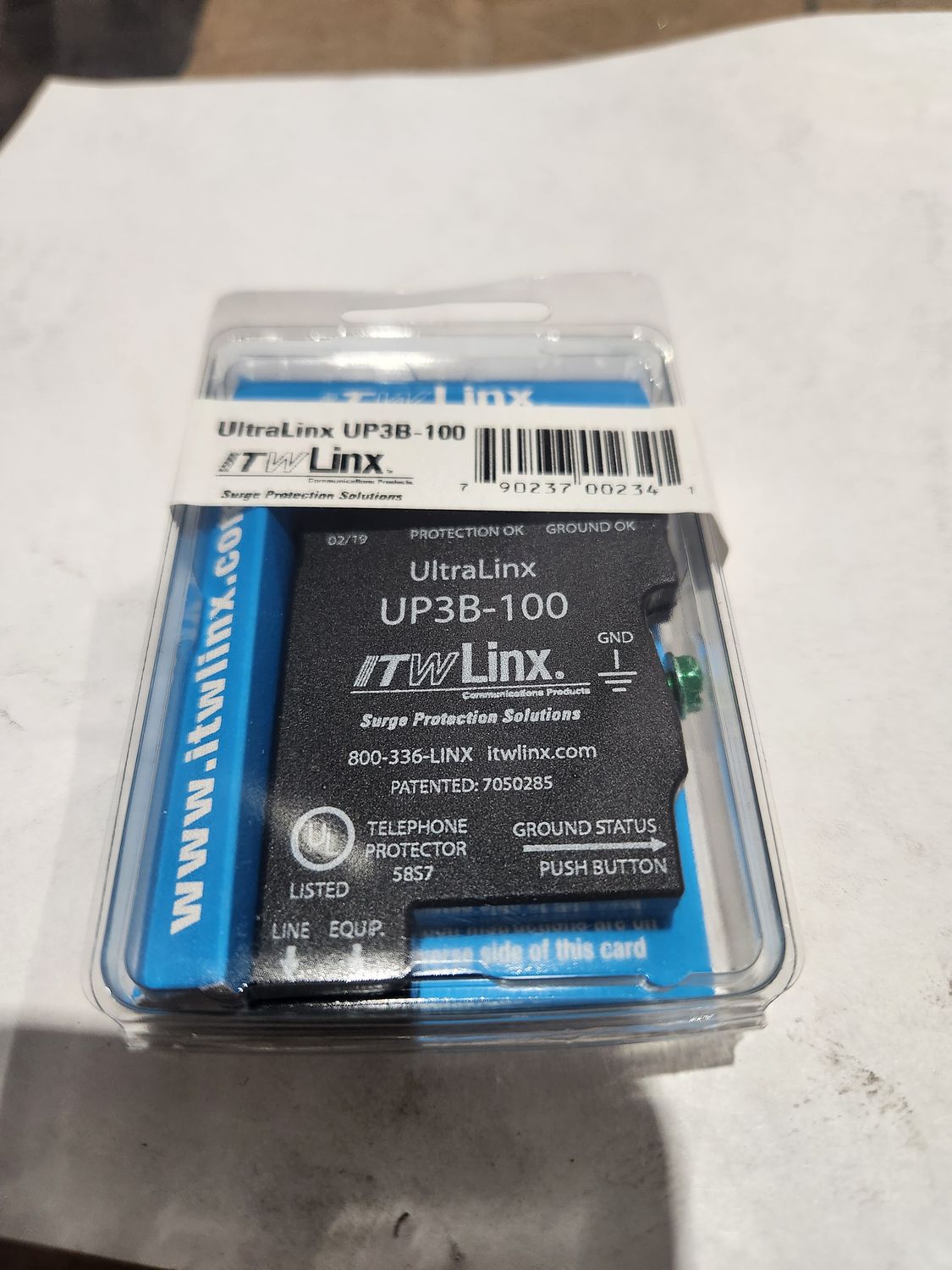

UP3B-100 Protection module 100VLTS Strike dc V. 90-125 (ITWLINX)

UP3B-100 Protection module 100VLTS Strike dc V. 90-125 (ITWLINX)

SKU UP3B-100
$11.00
Units in product: Unit
Price per unit: $11 per unit
In stock: 1425 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Share this product with your friends
ShareSharePin it
UP3B-100 Protection module 100VLTS Strike dc V. 90-125 (ITWLINX)
Product Details
UPC: 7.90237E+11
Brand: ITW
Weight: 0.05 lbs

Specifications UP3B-100 Specifications Installer

Description

Protect your electrical equipment with ITW. The UltraLinx surge protector is specifically designed for phone lines. UL and ETL listed, this surge protector is designed to get the job done, or ITW will replace it.

  • Scale the protection to the system size protect only the lines requiring protection
  • Protects against fires caused by overloads and power crosses
  • 350 mA fuse for voice/fax/modem line
  • 2 LEDs to indicate protection and ground ok.

SPECIFICATIONS
PRODUCT SPECIFICATIONS
Agency ApprovaL UL 497A (Primary), UL 497B (Secondary)
LED Indicators / Sneak Current Protection Yes
Grounding Requirements Field installed solid copper wire
for Secondary 1-6 pairs 14 AWG
for Secondary 7-25 pairs 6 AWG
Recommended Grounding Impedance <0.5 Ohm
PTC Rating 160mA (8-10 Ohms)
Applications Data / Voice / Fax / Modem lines
Width / Height / Depth / Weight 1.88” / 2.62” / 0.38” / 0.04 lbs
Product Warranty 5 years
SIGNAL LINE SURGE PROTECTION: (TELCO)

Signal Perfect Circuitry Yes
Auto-Resettable Yes
Clamping Level 7.5V, 16V, 27V, 39V, 75V, 100V, 235V
Response Time 1-5 Nanoseconds
Capacitance <50pF
Suppression Modes Metallic & Longitudinal
Wires Protected 2-wires, 1-pair
Termination Type 66 type M Blocks.
