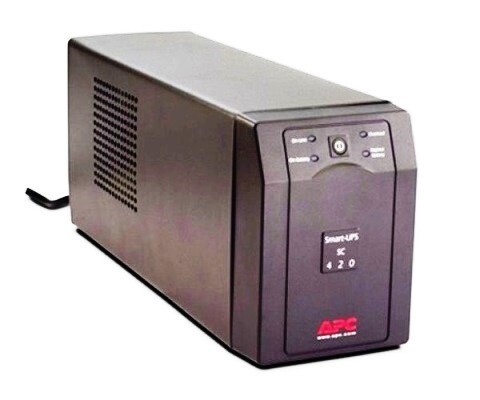

SC420 UPS 420VA Smart-UPS (in 120V nema 5-15P)(out 120V 4 nema 5-15R) Cord 1.83Mtrs Apc
SKU SC420
$152.00
Units in product: UNIT
Price per unit: $201.12 PER UNIT
In stock: 12 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
SC420 UPS 420VA Smart-UPS (in 120V nema 5-15P)(out 120V 4 nema 5-15R) Cord 1.83Mtrs Apc
Product Details
UPC: 731304222606
Brand: APC schneider-electric
Weight: 24.00 lbs
SC420
Catalog
Technical Specifications
| Presentation |
APC Smart-UPS SC is ideal for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages. The Smart-UPS SC features network grade protection, hot swap batteries, and built-in data line protection for worry free uninterruptible power protection for increased availability. Built on the same standards as the award-winning Smart-UPS, Smart-UPS SC provides the basic features and manageability needed to protect entry-level applications
|
|
|---|---|---|
| Lead time |
Usually in Stock
|
| provided equipment |
User manual
Smart UPS signalling RS-232 cable CD with software |
|
|---|---|---|
| product web sub-family |
Entry level
|
|
| performance multiplier |
0
|
|
| Number of tare power |
14 W
|
|
| Number of power module free slots |
0
|
|
| Number of power module filled slots |
0
|
|
| redundant |
No
|
|
| size UPS version |
Internetworking
Server Telecom |
|
| UPS size |
S
|
|
| value multiplier |
0
|
| cable length |
1.83 m
|
|
|---|---|---|
| color |
Grey
|
|
| depth |
36.8 cm
|
|
| height |
16.8 cm
|
|
| mounting location |
Front
|
|
| mounting preference |
No preference
|
|
| net weight |
10 kg
|
|
| mounting mode |
Not rack-mountable
|
|
| two posts mountable |
0
|
|
| USB compatible |
No
|
|
| width |
11.9 cm
|
| network frequency |
50/60 Hz +/- 3 Hz auto-sensing
|
|
|---|---|---|
| plug standard |
NEMA 5-15P
|
|
| input voltage limits |
75...154 V adjustable
82...144 V |
|
| number of cables |
1
|
|
| input voltage |
120 V
|
| rated power in W |
260 W
|
|
|---|---|---|
| Maximum configurable power in W |
260 W
|
|
| output frequency |
50/60 Hz +/- 3 Hz sync to mains
|
|
| UPS type |
Line interactive
|
|
| Wave type |
Stepped approximation to a sinewave
|
|
| nb of power socket outlets |
4 NEMA 5-15R
|
|
| curve equation |
Efficiency
|
|
| curve fixed loss |
0.0335
|
|
| curve load maximum |
100 %
|
|
| curve load minimum |
4 %
|
|
| curve proportional loss |
0
|
|
| curve square loss |
0.0048
|
|
| curve X-axis maximum |
100 %
|
|
| curve test cond ID |
Curve fit of data measured in accordance with the US DOE Test Procedure for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.0) output.
|
|
| curve X-axis minimum |
0 %
|
|
| curve X-axis title |
Load
|
|
| curve X-axis units |
Percentage
|
|
| curve Y-axis maximum |
100 %
|
|
| curve Y-axis minimum |
50 %
|
|
| curve Y-axis title |
Efficiency
|
|
| curve Y-axis units |
Percentage
|
|
| graph display |
1
|
|
| output voltage |
120 V
|
|
| Maximum configurable power in VA |
420 VA
|
|
| rated power in VA |
420 VA
|
|
| Transfer time |
4 ms typical: 8 ms maximum
|
| product certifications |
CSA
|
|
|---|---|---|
| standards |
FCC part 15 class A
UL 1778 |
|
| equipment protection policy |
Lifetime : $150000
|
| ambient air temperature for operation |
0…40 °C
|
|
|---|---|---|
| relative humidity |
0…95 %
|
|
| operating altitude |
0...10000 ft
|
|
| ambient air temperature for storage |
-15…45 °C
|
|
| Storage Relative Humidity |
0…95 %
|
|
| storage altitude |
0.00…15240.00 m
|
|
| acoustic level |
45 dBA
|
|
| heat dissipation |
50 Btu/h
|
|
| show note OP temperature |
No
|
| battery type |
Lead-acid battery
|
|
|---|---|---|
| number of battery filled slots |
0
|
|
| number of battery free slots |
0
|
|
| Battery recharge time |
5 h
|
|
| number of battery replacement quantity |
1
|
|
| liquid value |
0
|
|
| battery curve |
Z
|
|
| battery charger power |
17 W rated
|
|
| Battery power in VAH |
84 VAh runtime
|
|
| battery life |
3…5 year(s)
|
|
| extended runtime |
0
|
| free slots |
0
|
|
|---|---|---|
| control panel |
LED status display with on line: on battery: replace battery and overload indicators
|
|
| alarm |
Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
|
|
| Emergency power off |
Optional
|
| Surge energy rate |
412 J
|
|
|---|---|---|
| noise suppression |
Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
|
|
| Data line protection |
RJ45 modem/fax/DSL/10-100 base-T protection
|
| Package 1 Weight |
10.91 kg
|
|
|---|---|---|
| Package 1 Height |
31.8 cm
|
|
| Package 1 width |
26.2 cm
|
|
| Package 1 Length |
50.8 cm
|
|
| Number of Units in Package 3 |
12
|
