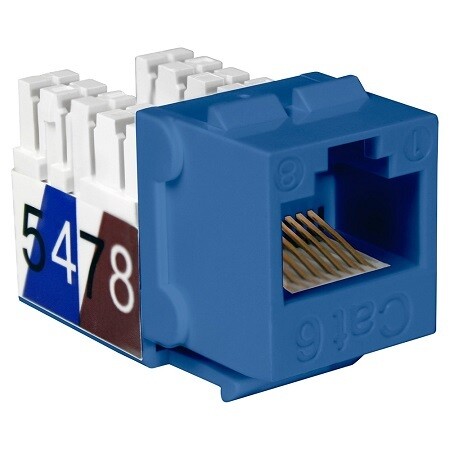

NKJ-6502 Jack CAT6 universal Slim-Style Blue Quest
SKU NKJ-6502
$2.13
ACQUA
Units in product: Unit
Price per unit: 2.13 per unit
In stock: 20 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
NKJ-6502 Jack CAT6 universal Slim-Style Blue Quest
Product Details
Brand: Quest
Weight: 0.10 lbs
NKJ-6502
Catalog
SPECIFICATIONS
| Performance Standard | Cat6 ANSI/TIA 568C.2 |
| Termination | 110 IDC, RJ45 |
| Jack Housing | ABS high-impact UL94V-0 thermoplastic |
| Spring wire | Phosphor Bronze C5210 temper wire |
| 50u” Gold over 100u” Nickel undercoat | |
| 180u” Tin over 70u” Nickel undercoat on solder area | |
| IDC Housing | Polycarbonate resin high-impact UL94V-0 thermoplastic |
| IDC Contact | Phosphor Bronze C5191R-H, t=0.4 mm, |
| 200u” Tin over 50u” Nickel undercoat | |
| Insertion Life | 750 mating cycles with FCC compliant RJ-45 plug |
| Contact Force | 100 grams with FCC compliant RJ-45 plug |
| Plug Retention Force | 11 lbs. min |
| Durability | 200 termination cycles |
| Contact compatibility | 22 to 26 AWG solid / 24 AWG stranded |
| Compliance | UL, RoHS |
