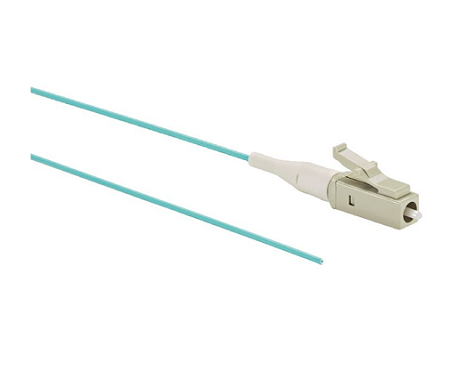

NKFPZ1BN1NNM001 Fiber pigtail LC MM OM4 NetKey 1 mtrs Aqua Panduit
SKU NKFPZ1BN1NNM001
$4.09
Sold out
Sold out
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
NKFPZ1BN1NNM001 Fiber pigtail LC MM OM4 NetKey 1 mtrs Aqua Panduit
Product Details
Weight: 0.10 lbs
NKFPZ1BN1NNM001
Catalog
Specifications
Fiber Type
OM4
Number of Fibers
1
Connector 1 Type
LC Simplex
Connector 2 Type
Pigtail
Maximum Connector Insertion Loss (dB)
0.3
Minimum Connector Return Loss (dB)
26
Overall Length (ft.)
3.28
Overall Length (m)
1
Fiber Diameter (µm)
50
Outer Diameter (In.)
0.03
Outer Diameter (mm)
0.9
Maximum Operating Temperature (°C)
60
Maximum Operating Temperature (°F)
140
Minimum Operating Temperature (°C)
-10
Minimum Operating Temperature (°F)
14
Maximum Installation Temperature (°C)
60
Maximum Installation Temperature (°F)
140
Minimum Installation Temperature (°C)
-10
Minimum Installation Temperature (°F)
14
Cable Color
Blue
Environment
Indoor
Standards Met
TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint
Application
Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers and at the desk. Support network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution and equipment distribution areas
Body Style
Simplex
Product Type
| Fiber Type | OM4 |
| Number of Fibers | 1 |
| Connector 1 Type | LC Simplex |
| Connector 2 Type | Pigtail |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 3.28 |
| Overall Length (m) | 1 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.03 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
| Cable Color | Blue |
| Environment | Indoor |
| Standards Met | TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers and at the desk. Support network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution and equipment distribution areas |
| Body Style | Simplex |
| Product Type |
