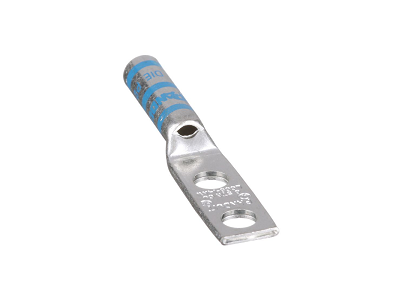

LCC6-14AW-L Long barrel lug two-hole AWG-6 stud hole 1/4" Panduit
SKU LCC6-14AW-L
$2.13
In stock: 200 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
LCC6-14AW-L Long barrel lug two-hole AWG-6 stud hole 1/4" Panduit
Product Details
UPC: 07498379774
Brand: Panduit
Weight: 1.50 lbs
LCC6-14AW-L
Catalog
Description
Two-hole, long barrel lug with window, #6 AWG wire, 1/4 stud hole, .63 hole spacing.
Code Conductor, Two-Hole, Long Barrel with Window Lug
For Use with Stranded Copper Conductors
Type LCC-W
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance.
- Inspection window to visually assure full conductor insertion.
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection.
- Tin-plated to inhibit corrosion.
- UL Listed and CSA Certified to 35 kV and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies.
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit Uni-Die Dieless Crimping Tools.
- Tested by Telcordia – meets NEBS Level 3.
- Lugs available in 90 and 45 degree bent tongue.
