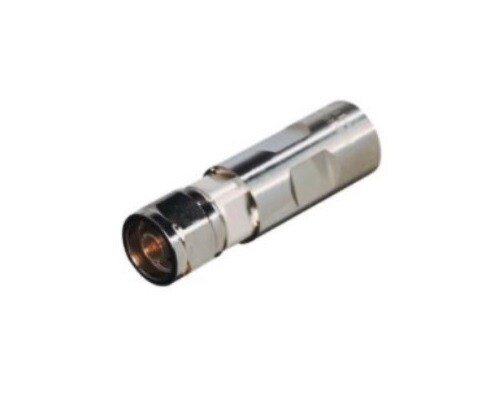

L4TNM-PSA Connector N male for 1/2" Andrew

L4TNM-PSA Connector N male for 1/2" Andrew

SKU L4TNM-PSA
$24.57
In stock: 20 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Share this product with your friends
ShareSharePin it
L4TNM-PSA Connector N male for 1/2" Andrew
Product Details
UPC: L4TNM-PSA
Brand: Hutton Communications
Weight: 0.10 lbs

Specifications L4TNM-PSA CatalogCatalog

Description

Revolutionary Positive Stop Connectors for HELIAX® corrugated coaxial cables require no special tools or torque wrenches, eliminating both guess work and time consuming measurements. Using standard wrenches and in less than one rotation, Positive Stop Connectors give the installer a clear visual and mechanical verification of a correct fit, sealing out water and sealing in excellent electrical performance. Positive Stop Connectors are waterproof, even unmated. The connectors' easy verification eliminates the need to control torque levels and provides consistent attachment integrity and electrical performance.

  • No Special Tools Required
  • Fully tightens in less than one rotations
  • Visual and mechanical fit verification
  • Integrated sealing mechanism
  • Faster, easier installation
  • Excellent Electrical performance.

  • You are looking at the Andrew L4PNM-RC Type N Male Ringflare for .5" LDF4-50A, New. These units are new with a 60 day warranty. There is more info provided in the link below. Thanks for your interest!
    Specifications

    Product Classification

    Product Type Wireless and radiating connector
    Product Brand HELIAX® | RingFlare™

    General Specifications

    Body Style Straight
    Cable Family LDF4-50A
    Inner Contact Attachment Method Captivated
    Inner Contact Plating Gold
    Interface N Male
    Mounting Angle Straight
    Outer Contact Attachment Method Ring-flare
    Outer Contact Plating Trimetal
    Pressurizable No

    Dimensions

    Length 75.946 mm | 2.99 in
    Diameter 22.098 mm | 0.87 in
    Nominal Size 1/2 in

    Electrical Specifications

    3rd Order IMD at Frequency -120 dBm @ 910 MHz
    3rd Order IMD Test Method Two +43 dBm carriers
    Insertion Loss, typical 0.05 dB
    Average Power at Frequency 0.6 kW @ 900 MHz
    Cable Impedance 50 ohm
    Connector Impedance 50 ohm
    dc Test Voltage 2000 V
    Inner Contact Resistance, maximum 2 mOhm
    Insulation Resistance, minimum 5000 mOhm
    Operating Frequency Band 0 – 8800 MHz
    Outer Contact Resistance, maximum 0.3 mOhm
    Peak Power, maximum 10 kW
    RF Operating Voltage, maximum (vrms) 707 V
    Shielding Effectiveness -130 dB

    Return Loss/VSWR

    Frequency Band VSWR Return Loss (dB)
    0–1000 MHz 1.04 36.00
    1000–2000 MHz 1.08 29.00

    Mechanical Specifications

    Attachment Durability 25 cycles
    Connector Retention Tensile Force 889.644 N | 200 lbf
    Connector Retention Torque 5.423 N-m | 48 in lb
    Coupling Nut Proof Torque 19.914 N-m | 176.25 in lb
    Coupling Nut Retention Force 444.822 N | 100 lbf
    Coupling Nut Retention Force Method MIL-C-39012C-3.25, 4.6.22
    Insertion Force 66.723 N | 15 lbf
    Insertion Force Method MIL-C-39012C-3.12, 4.6.9
    Interface Durability 500 cycles
    Interface Durability Method IEC 61169-16:9.5
    Mechanical Shock Test Method MIL-STD-202, Method 213, Test Condition I

    Environmental Specifications

    Operating Temperature -55 °C to +150 °C (-67 °F to +302 °F)
    Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)
    Attenuation, Ambient Temperature 20 °C | 68 °F
    Average Power, Ambient Temperature 40 °C | 104 °F
    Corrosion Test Method MIL-STD-1344A, Method 1001.1, Test Condition A
    Immersion Depth 1 m
    Immersion Test Mating Mated
    Immersion Test Method IEC 60529:2001, IP68
    Moisture Resistance Test Method MIL-STD-202F, Method 106F
    Thermal Shock Test Method MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C
    Vibration Test Method MIL-STD-202F, Method 204D, Test Condition B
    Water Jetting Test Mating Mated
    Water Jetting Test Method IEC 60529:2001, IP66

    Packaging and Weights

    Weight, net 242 g | 0.534 lb
