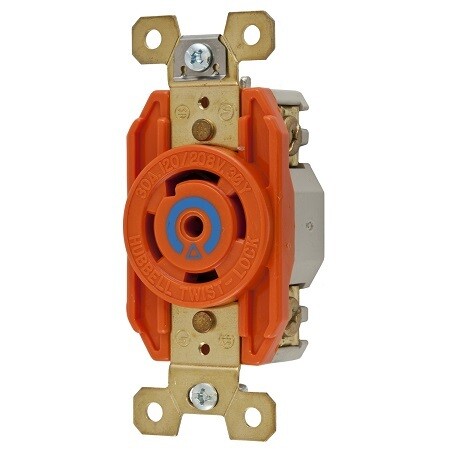

Name: IG2810 Receptacle twist-lock insolate ground 4P5W 30A 120/208V (3 phase) (L21-30R) single orange Hubbell
SKU: IG2810
Price: 52.6 USD
Availability: OutOfStock

IG2810 Receptacle twist-lock insolate ground 4P5W 30A 120/208V (3 phase) (L21-30R) single orange Hubbell

Product Details

Weight: 0.30 lbs

IG2810 Catalog

Product Details

General

Application	Heavy Duty Industrial
Color	Orange
Environmental Conditions	Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum	3
Item Type	30A Single Flush Receptacle
Listings	UL 498 Fed.Spec. W-C-596 CSA C22.2 No.42
Material	Nylon
Material - Mounting Hardware	Screw Mounting
Number Of Poles	4-Pole
OEM Brand Name	Hubbell Wiring Device-Kellems
Operating Temperature	Maximum continuous 75¬∞C and minimum -40¬∞C without Impact
Performance	Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 - #8 AWG solid or stranded copper wire Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75¬∞C Minimum -40¬∞C (w/o impact)
UPC	783585872506

Dimensions

Dimensions	3.28 in x 1.67 in x 1.31 in
Display Size	Standard Sized Product
Height	1.31 in
Length	3.28 in
Weight	0.30 lb
Width	1.67 in

Electrical Ratings

Amperage Rating	30 A
Connectivity	Back and Side Wired Screw Terminals
Current / Amperage Rating	30 A
Current Rating	30 A
Dielectric Strength	Withstands 2,000V minimum
Phase	3 Phase WYE
Voltage Rating	120 V 208 V
Voltage Rating Description	120/208 V
Wattage
