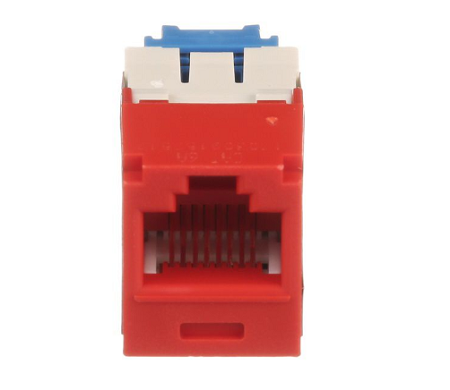

CJ6X88TGRD Jack CAT6A universal mini-com 10G red Panduit
SKU CJ6X88TGRD
$15.30
In stock: 76 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
CJ6X88TGRD Jack CAT6A universal mini-com 10G red Panduit
Product Details
Weight: 0.30 lbs
CJ6X88TGRD
Catalog
Specifications
Note
N/A
Product Type
UTP Jack Module
Performance Level
Category 6A
Connector Type
Jack Module
Termination Style
TG Style
Body Material
ABS
Contact Material
Copper
Module Type
Mini-Com®
Wiring Scheme
T568A/T568B
Shield Type
Unshielded (UTP)
Connector 1 Type
RJ45
Sub Brand
PanNet
Connector 2 Type
RJ45
Maximum Operating Temperature (°C)
65
Maximum Operating Temperature (°F)
149
Minimum Operating Temperature (°C)
-10
Minimum Operating Temperature (°F)
14
Maximum Storage Temperature (°C)
70
Maximum Storage Temperature (°F)
158
Minimum Storage Temperature (°C)
-40
Minimum Storage Temperature (°F)
-40
Resistance Properties
Heat-Resistant
Color
Red
Standards Met
Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Complaint
Overall Depth (In.)
| Note | N/A |
| Product Type | UTP Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module |
| Termination Style | TG Style |
| Body Material | ABS |
| Contact Material | Copper |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Connector 1 Type | RJ45 |
| Sub Brand | PanNet |
| Connector 2 Type | RJ45 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Red |
| Standards Met | Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Complaint |
| Overall Depth (In.) |
