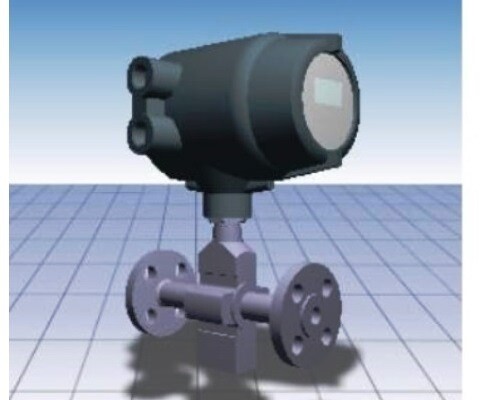

Name: AXF015C-D1AL1N-BA11-21B/FF1/RA/P2 AXF015 Size 15 mm (0.5 in.) Integral Flowmeter with D1AL1N-BA11-21B/FF1/RA/P2 Yokogawa
Brand: Tyco/amp
SKU: AXF015C-D1AL1N-BA11-21B/FF1/RA
Price: 3240.0 USD
Availability: InStock

AXF015 Size 15 mm (0.5 in.) Integral Flowmeter with D1AL1N-BA11-21B/FF1/RA/P2 Yokogawa

Product Details

UPC: 492622-1

Brand: Tyco/amp

Weight: 2.00 lbs

AXF015C

Description

*[AXF015] Size 15 mm (0.5 in.) Integral Flowmeter

*[C] Use: Explosion proof Type

*[-D] Converter, Output Signal and Communication: Integral Flowmeter with

4 to 20mA DC Output and BRAIN Communication

*[1] Power Supply: Integral Flowmeter, 100 V to 240 V AC or 100 to 120 V DC

*[A] Lining: Fluorocarbon PFA

*[L] Electrode MateriaL: JIS SUS316L (AISI 316L SS/EN 1.4404 Equivalent)

*[1] Electrode Structure: Non-replaceable

*[N] Grounding Ring and Grounding Electrode Material: None

*[-BA1] Process Connection: ANSI Class 150 Wafer

*[1] Lay Length: Standard

*[-2] Electrical Connection: ANSI 1/2 NPT female

*[1] Indicator: Integral Flowmeter with indicator (Horizontal)

*[B] Calibration: Standard

*[/FF1] FM Approval: FM Explosion proof

*[/RA] Direction change of the electrical connection: 90 degrees rotated

converter (or terminal box) to change the direction of the electrical

connection.

*[/P2] Painting Color Change: Coated in jade green (Munsell 7.5 BG 4/1.5 or

its equivalent.)

*[DOC-TC] Certification Test

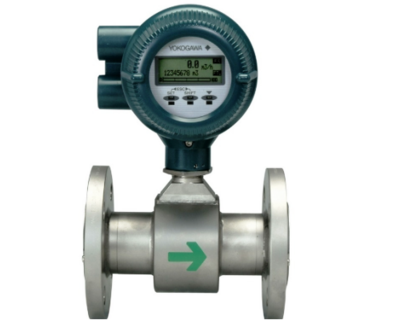

The ADMAG AXF is the magnetic flow meter which has adopted the proven Dual Frequency Excitation. Moreover, the Enhanced Dual Frequency Excitation has been newly added to tackle more severe applications.

The AXF has user-friendly functions; such as an electrode adhesion level diagnosis function, infra-red switches which can be used for setting parameters without opening the case cover, ability to change the direction of electrical connection on the site.

Based on FOUNDATION‚Ñ¢ Fieldbus specifications, AXF Fieldbus models offer more flexible instrumentation through a higher level communication capability and propose the cost reduction by multi-drop wirings with less cables. FOUNDATION‚Ñ¢ Fieldbus is a registered trademark of Fieldbus FOUNDATION.
