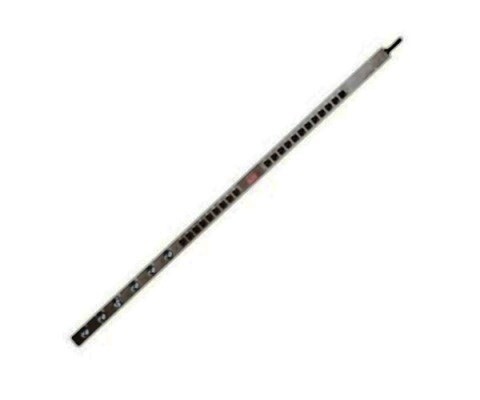

AP7563 PDU Vertical basic 20A 120/208V 5.7KW 3HP (input L21-20P) (output (6)L6-20R+(21)5-20R) (output 120V 208V) cord. 0.91 mts Apc
SKU AP7563
$262.68
In stock: 12 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
AP7563 PDU Vertical basic 20A 120/208V 5.7KW 3HP (input L21-20P) (output (6)L6-20R+(21)5-20R) (output 120V 208V) cord. 0.91 mts Apc
Product Details
Weight: 36.00 lbs
AP7563
Catalog
AP7563 Features
Key Features
| Output Connections |
(6) NEMA L6-20R (21) NEMA 5-20R |
| Nominal Output Voltage |
120V, 208V |
| Nominal Input Voltage |
208V 3PH |
| Input Connections |
NEMA L21-20P |
| Cord Length |
2.99ft (0.9meters) |
Rack PDU,Basic, Zero U,5.7kW,120&208V,(21)5-20 & (6)L6-20
Reliable rack power distribution
Includes: Installation guide, Rack mounting brackets, Toolless mounting kit.
Technical Specifications
Output
Overload Protection
No
Maximum Total Current Draw
20
Overload Protection
No
Maximum Total Current Draw
20
Input
Input frequency
50/60 Hz
Number of Power Cords
1
Load Capacity
5700VA
Maximum Input Current
20A
Regulatory Derated Input Current (North America)
16A
Input frequency
50/60 Hz
Number of Power Cords
1
Load Capacity
5700VA
Maximum Input Current
20A
Regulatory Derated Input Current (North America)
16A
Physical
Maximum Height
70.0inches (1778MM, 177.8CM)
Maximum Width
2.2inches (56MM, 5.6CM)
Maximum Depth
1.73inches (44MM, 4.4CM)
Net Weight
12.04lbs. (5.46KG)
Shipping weight
14.02lbs. (6.36KG)
Shipping Height
84.02inches (2134MM, 213.4CM)
Shipping Width
5.98inches (152MM, 15.2CM)
Shipping Depth
5.0inches (127MM, 12.7CM)
Color
Black
Maximum Height
70.0inches (1778MM, 177.8CM)
Maximum Width
2.2inches (56MM, 5.6CM)
Maximum Depth
1.73inches (44MM, 4.4CM)
Net Weight
12.04lbs. (5.46KG)
Shipping weight
14.02lbs. (6.36KG)
Shipping Height
84.02inches (2134MM, 213.4CM)
Shipping Width
5.98inches (152MM, 15.2CM)
Shipping Depth
5.0inches (127MM, 12.7CM)
Color
Black
Environmental
Operating Temperature
32 - 113 °F (0 - 45 °C)
Operating Relative Humidity
5 - 95 %
Operating Temperature
32 - 113 °F (0 - 45 °C)
Operating Relative Humidity
5 - 95 %
