2412 006 1000 Cable CAT6+ 1000FT AWG23 PVC U/UTP Ricer-CMR Gray Belden
SKU 2412 0061000
$164.10
In stock: 144 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
2412 006 1000 Cable CAT6+ 1000FT AWG23 PVC U/UTP Ricer-CMR Gray Belden
Product Details
UPC: 6.12825E+11
Brand: Belden
Weight: 26.00 lbs
2412
Catalog
Description

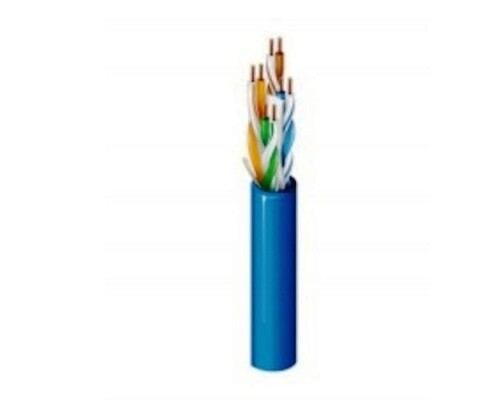

The 2412 006A1000 is a 4-pair 1000ft Unshielded Cable with 23AWG solid bare copper conductors and polyolefin insulation. This 2413 plenum enhanced CAT6 non-bonded pair multi-conductor cable comes with tape separator, ripcord and blue PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 40lbs Maximum recommended pulling tension
- 70% Nominal velocity of propagation
- 8.2Ω/100m at 20°C Nominal conductor DC resistance (DCR)
- 0 to 75°C Operating temperature range
